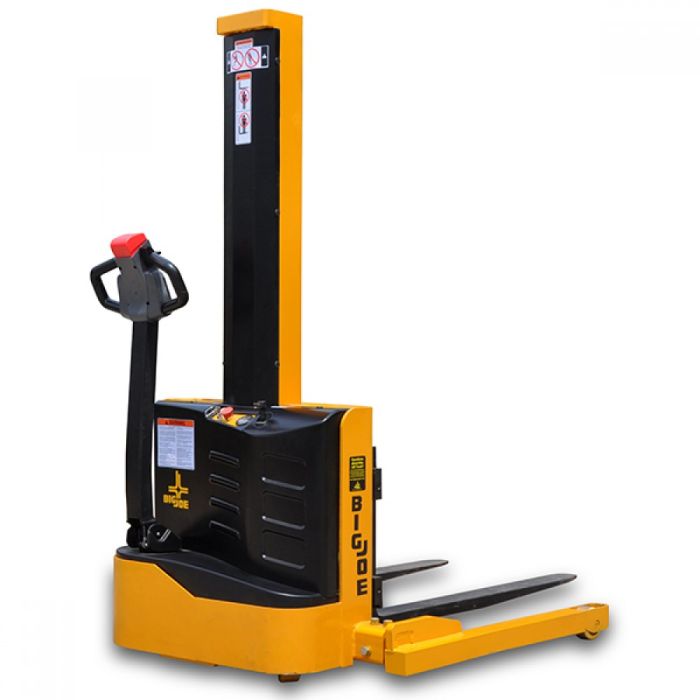

S22-62 Walkie Straddle Stacker

S22-62 Walkie Straddle Stacker
Reg. $6,209.00

Availability: In stock

Quick Overview

Big Joe's Electric Walkie Straddle Stacker has a 2,200 lb load capacity and comes with an adjustable fork carriage, 62” lift, and 24” load center.

Product Description

The S22-62 Fully Powered Walkie Straddle Stacker with 2,200 lbs capacity and 62" lift has a load center of 24”. This power lift, power travel stacker is equipped with a work table making it easy to load/unload materials in tight spaces. Features include: an adjustable fork carriage, amp meter, key switch, 24-Volt permanent magnet DC drive motor, 110v plug-in auto charger, pallet forks, positive steer tracking caster, and a turning radius that allows for maneuverability within 60" wide aisles. The S22-62 is compatible with both open-bottom and closed-bottom pallets.
Request More Information
  • S22-62
  • * Fields are Mandatory
  • Please limit comments to 4000 characters

  • File types allowed: .jpg .jpeg .gif .png .pdf

Physical Specs
Minimum Aisle Width 84"
Lowered Fork Height 2"
Fork Length 45"
Fork Width 22"
Overall Height 76.5"
Tech Specs
Model S22-62
Brand Big Joe
Batteries 60 AH AGM Monomast - 85AH Two-stage
Load Wheels (2) 4” x 2” polyurethane
Charger Integral to pack, 110v Plug-In
Wheel 8.26” x 2.76” polyurethane
Wheel Type Polyurethane
Travel Speed 3.41 mph empty/2.5 mph loaded
Lower Speed 17.5 fpm empty/17.6 fpm loaded
Lifting Speed 33.5 fpm empty/17.8 fpm loaded
Lift Height 62"
Load Center 24"
Capacity 2,200 lbs
Shipping Info

Please be aware that lead times can change at any moment due to supply and demand.

Estimated Product Availability Ships in 1 - 2 Weeks
FOB Elk Grove Village, IL
Shipping weight* 1305
Shipping Class* 175
