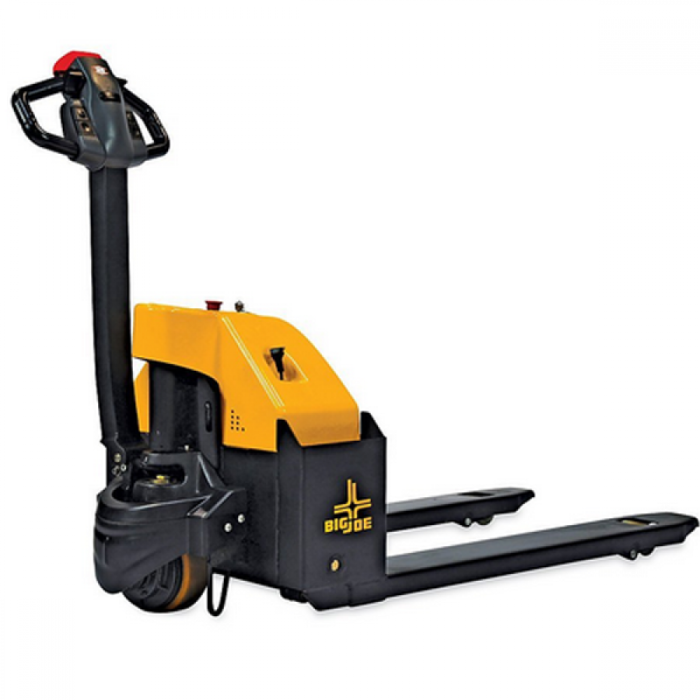

Light Duty Electric Pallet Truck - E30

$3,599.00
Light Duty Electric Pallet Truck - E30

Reg. $3,699.00

Special Price $3,599.00



Availability: In stock

Quick Overview

3,000 lb capacity Power Drive 27" x 45" Pallet Truck. Raised height of 7” and 3” lowered height. Features: 24 Volt electrical system, high quality hydraulic pump, wrap around hand guard, “belly button” reversing switch, thumb control and horn.

Product Description

The E30 power driven, electric low lift pallet truck with a capacity of 3,000 lbs. Curtis travel control with matching permanent magnetic drive motor. Electric braking, quick disconnect (EPD) power cut off and battery discharge indicator. High quality hydraulic pump provides a smooth lifting / lowing and helps provide a long life. Complete with 24 volt industrial battery pack, DC drive motor and 110 VAC plug in automatic charger. Warranty is 90 day parts. Optional 85AH (AGM) battery pack for extended run times up to 4.5 hours. See all electric powered pallet trucks.

Download Documents (PDFs)

View FileE30 PDF Size: (82.17 KB)
Request More Information
  • E30
  • * Fields are Mandatory

  • Please limit comments to 4000 characters

  • File types allowed: .jpg .jpeg .gif .png .pdf


Physical Specs
Overall Fork Width27"
Fork Width6"
Overall Width27"
Overall Length63.8"
Power Head Length18.8"
Fork Length45"
Width Between Forks15"
Tech Specs
ModelE30
BrandBig Joe
Batteries24 Volt 65 AH maintenance free battery
Wheel TypePolyurethane
Drive Speed2.8 mph empty / 2.5 mph loaded
Turning Radius58"
Capacity3,000 lbs
Drive Wheel8.26" x 2.76"
Load Wheels2.36" x 3.15"
Motor24 Volt permanent DC drive motor
Controller TypeCurtis travel control
Lowered Fork Height3"
Drive TypeDC
Drive ControlCreep Speed Travel Control
Raised Height7.5"
Type of TruckLight Duty
Digital DisplayBattery discharge indicator
Shipping Info

Please be aware that lead times can change at any moment due to supply and demand.

Estimated Product AvailabilityShips in 1 - 2 Weeks
FOBWisconsin Dells, WI
Shipping weight*475
Shipping Class*175
